PB 532

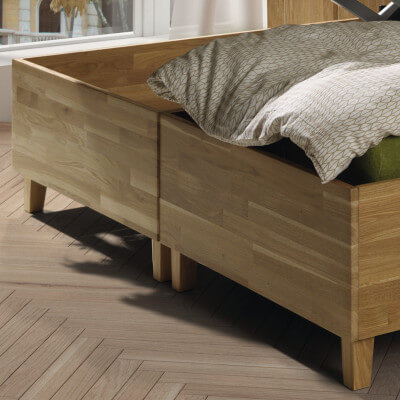

In the picture: two PB 532 oak enclosures with PB 521 static mattress platforms. Accessories: Rubens 3 table in light oak.


The PB 532 bed with static mattress platform PB 521 is a unique proposal from Elbur, combining a homely character with the full functionality of a long-term care bed. The possibility of combining two beds together facilitates direct contact and support for the person in need of care. The use of solid oak and an upholstered soft headboard ensure that the bedroom does not lose its unique character.

PB 321 can be ordered with HPL boards in white or beech. The metal side rails are easy to assemble and provide an optimal protection against an accidental falling out. The side bars can be lowered in a way that they pose no hindrance for entering or exiting the bed. This bed complies to the highest standards. Its 4-sectional lying surface is individually adjustable with 2 independent motors. Furthermore the adjustment of the foot part is assisted by 2 ratchet.

The metal mesh lying area comes with the standard dimensions of 90 cm x200 cm. The lying area can also be ordered with wooden sprung slats instead of the metal mesh. The products will be delivered using transport-racks (at a maximum of 2 beds per palette). The beds have been partly preassembled and can be easily setup by a single person. The 4-sectional lying surface is electrically adjustable between 40 cm and 80 cm (upper end of the lying area). All electronic components have been manufactured according to latest research and are in accordance with all valid safety requirements and standards. Every single adjustment option of the bed is comfortably controllable by using the splash-proof manual control switch and any single function can be individually locked. The help pole has a load capacity of 80 kg. For additional stability it is also equipped with an inner core barrel.


Naturalne drewno dębowe

Natural oakwood

Product details

1. Natural oakwood

4. Possibility to set up 2 beds side by side

2. Extendable mattress support platform 5. Handset with lockable individual functions

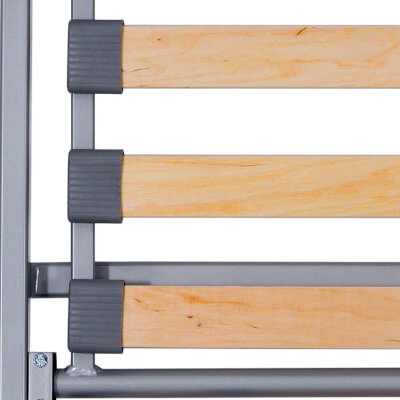

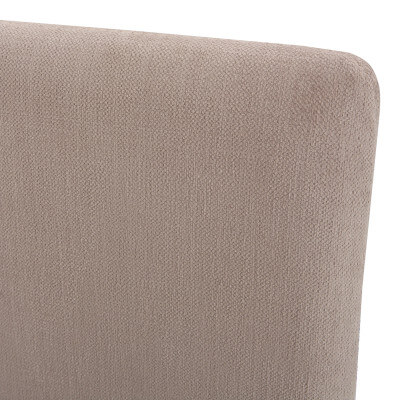

3. Washable fabric 6. Mattress support platform with firmness


mattress support platform width choice

Technical parameters

Save work load 175 kg
Maximum user weight 140 kg

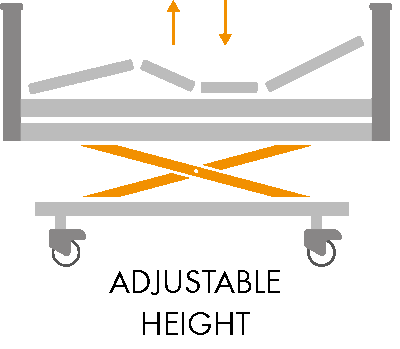

Mattress support platform height adjustment from 35,5 to 76,5 cm

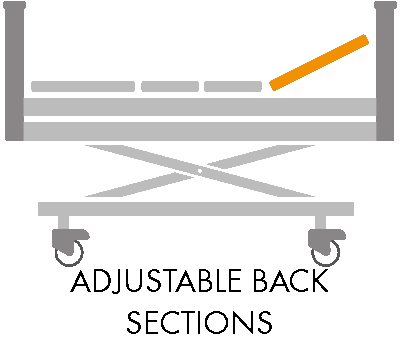

Back rest adjustment: 0 ÷ 70°

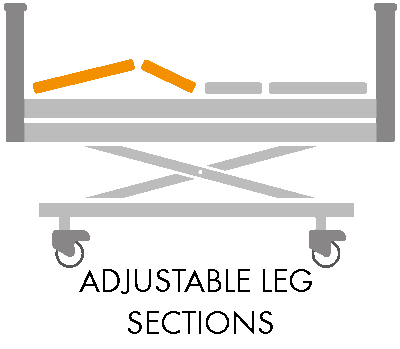

Lower leg rest adjustment: 0 ÷ 20°
External dimensions (length × width): 209 × 98 cm
Clearance under the bed: approx. 11 cm
Total weight: 118,3 kg
Wooden legs: max 100 mm


Functions of the rehabilitation bed


Instructions for use -in the "Download"

PB 532.pdf
