PB 735

In the picture: PB 735 bed in maple, standard design.



The PB 735 bed is for high dependancy users. Unique technical parameters such as increased load, the „comfort” position, the integrated extension of the mattress support platform, autoregression function and the low position of the mattress support platform
make it a good choice for care facilities and private homes.

Our modern PB 735 care bed is primarily designed for use in care facilities. The homely feeling of your own four walls is combined here with a wide range of possible uses. The care bed offers all the comforts of a modern care bed, such as wall deflectors, central locking and 125 mm plastic castors, so that the care bed is easy to move. In addition, of course, it offers adjustments such as Trendelenburg and Anti-Trendelenburg, further backward displacement of the back when straightening up so as not to compress the mattress, three pre-programmed height positions of the lying surface (sleep - getting up - care) with a height adjustment from 31 cm to 81 cm (upper edge of the lying surface ). The wheelchair accessibility for person hoists is 15 cm.

The PB 735 has excellent stability with a high safe working load of 220 kg. Variant PB 736 with the PB 736 variant, 4 standing cylinders with integrated central locking cover the rollers. This modern care bed PB 735 offers a large number of possible variations in color, fronts from wood to fabric or synthetic leather-covered fronts, low foot sections, various side rail variants, lying surface extension by 20 cm, central locking and much more.

Standard colors


C1 Dark beech



Product details

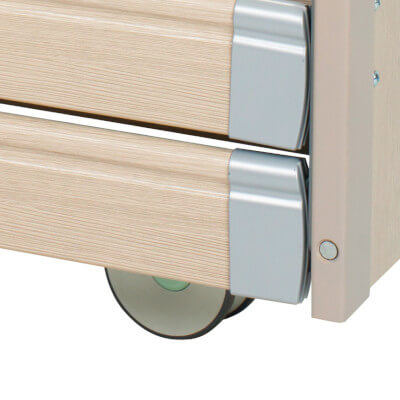

1. Lowest mattress support platform level of 31 cm (about 100 mm) 4. Integrated mattress support platform extension (option)

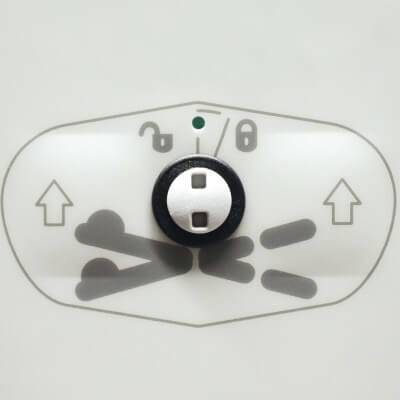

2. Advanced linak la40/co 61 5. Trendelenburg and Anti-trendelenburg positions

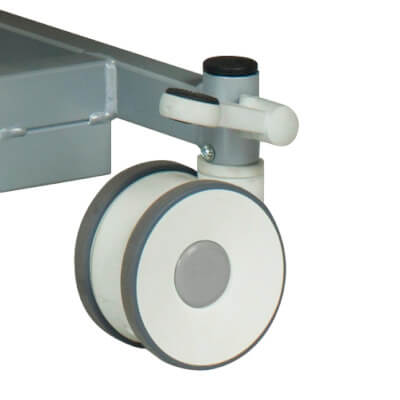

3. Maximum safe working load 220 kg 6. Double brake castors

Options

colors choice • central brakes

Technical parameters

Save work load 220 kg
Maximum user weight 185 kg
Mattress support platform height adjustment from 31 to 81 cm
Back rest adjustment: 0 ÷ 70°
Lower leg rest adjustment: 0 ÷ 20°
External dimensions (length × width): 206 × 107 cm
Clearance under the bed: approx. 16 cm
Total weight: 135,8 kg
Castors: 100 mm with a brake



Functions of the rehabilitation bed

Download:

Instructions for use -in the "Download"

Technical specification.pdf

PB 735.pdf
