PB 321

In the picture: PB 321 bed standard design in beech. Accessories: cabinet Rubens 1 in beech.



The PB 321 bed has all the essential functions that provide comfort and safety to the user, thanks to the use of waterproof components, the bed is easy to clean and disinfect.

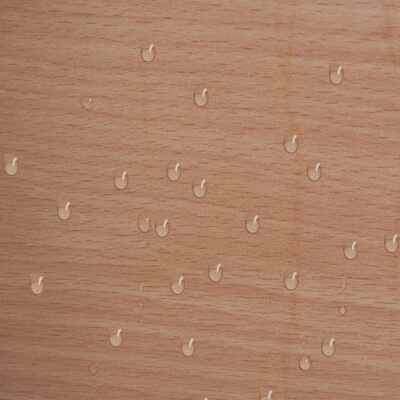

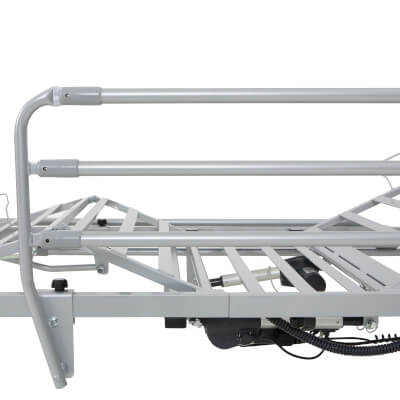

PB 321 can be ordered with HPL boards in white or beech. The metal side rails are easy to assemble and provide an optimal protection against an accidental falling out. The side bars can be lowered in a way that they pose no hindrance for entering or exiting the bed. This bed complies to the highest standards. Its 4-sectional lying surface is individually adjustable with 2 independent motors. Furthermore the adjustment of the foot part is assisted by 2 ratchet.

The metal mesh lying area comes with the standard dimensions of 90 cm x200 cm. The lying area can also be ordered with wooden sprung slats instead of the metal mesh. The products will be delivered using transport-racks (at a maximum of 2 beds per palette). The beds have been partly preassembled and can be easily setup by a single person. The 4-sectional lying surface is electrically adjustable between 40 cm and 80 cm (upper end of the lying area). All electronic components have been manufactured according to latest research and are in accordance with all valid safety requirements and standards. Every single adjustment option of the bed is comfortably controllable by using the splash-proof manual control switch and any single function can be individually locked. The help pole has a load capacity of 80 kg. For additional stability it is also equipped with an inner core barrel.

Standard colors


C1 Dark beech



Product details

1. Mattress support platform easy to clean 4. Handset with lockable functions
2. Waterproof head/foot board 5. Knee section adjustment
3. Folding side rail 6. Brake castors

Options

extendable mattress platform • Trendelenburg position

Technical parameters

Save work load 175 kg
Maximum user weight 140 kg
Mattress support platform height adjustment from 40 to 80 cm
Back rest adjustment: 0 ÷ 70°
Lower leg rest adjustment: 0 ÷ 20°
External dimensions (length × width): 216 × 101 cm
Clearance under the bed: approx. 22 cm
Total weight: 92,6 kg
Castors: 100 mm with a brake



Functions of the rehabilitation bed

Download:

Instructions for use -in the "Download"

Technical specification.pdf

PB 321.pdf
