PB 323

In the picture: PB 323 bed standard design in beech. Accessories: cabinet Rubens 1 in beech.



The PB 323 bed with its 14.5 cm high frame protects the user against falls. Thanks to the low position it is not necessary to use side rails. This model is especially suitable for patients with coordination problems.

PB 321 can be ordered with HPL boards in white or beech. The metal side rails are easy to assemble and provide an optimal protection against an accidental falling out. The side bars can be lowered in a way that they pose no hindrance for entering or exiting the bed. This bed complies to the highest standards. Its 4-sectional lying surface is individually adjustable with 2 independent motors. Furthermore the adjustment of the foot part is assisted by 2 ratchet.

The metal mesh lying area comes with the standard dimensions of 90 cm x200 cm. The lying area can also be ordered with wooden sprung slats instead of the metal mesh. The products will be delivered using transport-racks (at a maximum of 2 beds per palette). The beds have been partly preassembled and can be easily setup by a single person. The 4-sectional lying surface is electrically adjustable between 40 cm and 80 cm (upper end of the lying area). All electronic components have been manufactured according to latest research and are in accordance with all valid safety requirements and standards. Every single adjustment option of the bed is comfortably controllable by using the splash-proof manual control switch and any single function can be individually locked. The help pole has a load capacity of 80 kg. For additional stability it is also equipped with an inner core barrel.

Standard colors


C1 Dark beech



Product details

1. Lowest mattress support platform level of 14,5 cm 4. Knee section adjustment
2. Mattress support platform easy to clean 5. Linak drive system

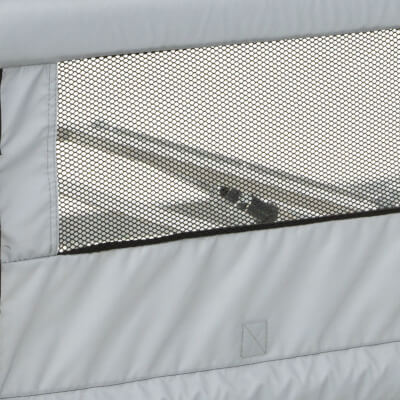

3. Handset with lockable functions 6. Fabric drop down side rail (option)

Options

fabric drop down side rail • Trendelenburg position

Technical parameters

Save work load 175 kg
Maximum user weight 140 kg
Mattress support platform height adjustment from 14,5 to 64,5 cm
Back rest adjustment: 0 ÷ 70°
Lower leg rest adjustment: 0 ÷ 20°
External dimensions (length × width): 221 × 93 cm
Clearance under the bed: approx. 1,5 cm
Total weight: 76,7 kg
Castors: 75 mm with a brake



Functions of the rehabilitation bed
