PB 326

In the picture: PB 326 bed, standard design in beech. Accessories: cabinet Rubens 3, beech.



Our versatile PB 326 bed with its attractive design blends easily into many environments. Comfort for the user through a variety of functions, as well as ergonomic working conditions for the carer, make this product especially valued by rehabilitation equipment
rental companies and individual users.

Stable front lifting care bed with well- proven technology.
With its beach colored wooden parts, the open fronts and the silver colored, powdered metal pieces, this care bed blends in naturally with any room ambience. The open fronts with the metal frame and hand rail are easy and quick to clean.

To avoid any sort of squeezing hazard there are side rail end caps at the ends of the side rails that minimize the space between side rails and wooden fronts in a way that prevent accidental squeezing.

This bed complies to the highest standards. Its 4-sectional lying surface is individually adjustable with 2 independent motors. Furthermore the adjustment of the foot part is assisted by 2 ratchets.  For the standard version of the bed, the lying area with wooden sprung slats and durability adjuster comes with a surface area of 90 cm x 200 cm. It can also be ordered in 80 cm x 200 cm or at a length of 220 cm. For a t surcharge an easy to clean metal mesh lying area can be ordered.

Products will be delivered using transport-racks (at a maximum of 2 beds per palette) The beds have been partly preassembled and can be easily setup by a single person. The 4-sectional lying surface is electrically adjustable between 40 cm and 80 cm (upper end of the lying area). All electronic components have been manufactured according to latest research and are in accordance with all valid safety requirements and standards. Every single adjustment option of the bed is comfortably controllable by using the splash-proof manual control switch and any single function can be individually locked.

Standard colors

C1 Dark beech C2 Light beech



Product details

1. The beechwood elements 4. Knee section adjustment
2. Mattress support platform with firmness adjustment 5. Brake castors

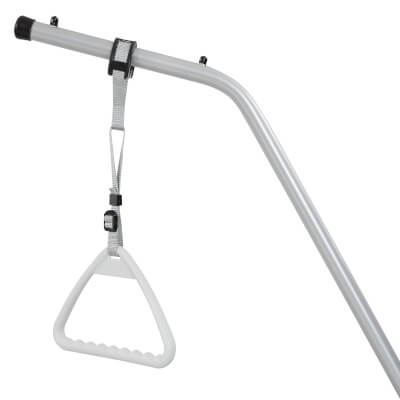

3. Handset with lockable functions 6. Lifting pole

Options

length and mattress support material choices • Trendelenburg position

Technical parameters

Save work load 175 kg
Maximum user weight 140 kg
Mattress support platform height adjustment from 40 to 80 cm
Back rest adjustment: 0 ÷ 70°
Lower leg rest adjustment: 0 ÷ 20°
External dimensions (length × width): 216 × 104 cm
Clearance under the bed: approx. 22 cm
Total weight: 90,0 kg
Castors: 100 mm with a brake



Functions of the rehabilitation bed
