PB 521 II

In the picture: PB521 static mattress platform, standard dimensions 90×190 cm.


The PB 521 static mattress platform is a universal design with many applications. Increased patient weight, wide range of configurations of width and length of the bed, makes it meet the expectations of very demanding users who want to make their own design choice.

The flexible bed in bed system with the latest technology

The bed in bed frame PB 521 can be combined with any or our bed frames. It stands firm and securely on its support frame and can be bolted safely. The PB 521 is available in many different dimensions according to your needs. It can also be integrated easily into already existing double beds.

The bed frame PB 521 complies with the highest standards and transforms your Bed room into a comfortable paradise.  Its 4-sectional lying surface is individually  adjustable with 2 independent motors. Furthermore the adjustment of the foot part is assisted by 2 ratchets.

For the standard version of the bed, the lying area with wooden sprung slats and durability adjuster comes with a surface area of 90 cm x 190 cm. The variably adjustable mattress retainers on the sides and on the foot part allow mattress dimensions between 90 cm and 100 cm with a single lying area. Against surcharge other lying area dimensions (up to a width of 140 cm and a length of 220 cm) or an easy to clean metal mesh lying area can be ordered. To ensure optimal stability the Bed in Bed system exceeding a width of 100 cm is only available as a metal mesh.

PB 521XL

In case a 175 kg maximum load is not enough, ask for our PB 521 XL that is Resilient up to a 250 kg maximum load. The lying area is only available as a metal mesh. The product comes boxed in cardboard packaging. Due to its elaborate and well-thought-out construction, this scissor lifting bed is easy to set up by a single person.

The 4-sectional lying surface is electrically adjustable between 31 cm and 71 cm (upper end of the lying area). All electronic components have been manufactured according to latest research and are in accordance with all valid safety requirements and standards. Every single adjustment option of the bed is comfortably controllable by using the splash-proof manual control switch and any single function can be individually locked. The help pole has a load capacity of 80 kg. For additional stability it is also equipped with an inner core barrel.

Product details

1. Various dimensions of mattress support platform 4. Handset with lockable individual functions

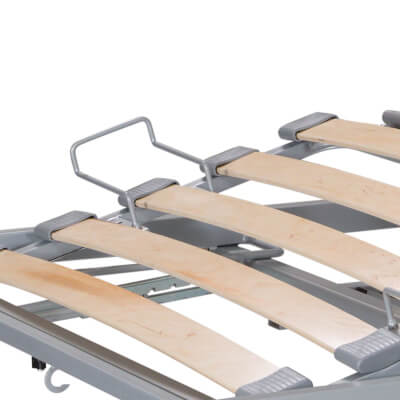

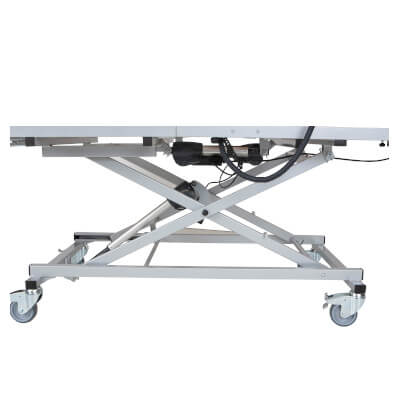

2. Sturdy, well-tested lift 5. Possibility to change the position of the mattress holder
3. Safe working load 200 kg 6. Mattress support platform with firmness adjustment


extendable mattress support platform • wide range of mattress support platform base and dimensions

Technical parameters

Save work load 200 kg
Maximum user weight 165 kg
Mattress support platform height adjustment from 35,5 to 76,5 cm
Back rest adjustment: 0 ÷ 70°
Lower leg rest adjustment: 0 ÷ 20°
External dimensions (length × width): 190 × 90 cm
Clearance under the bed: approx. 13,5 cm
Total weight: 77,2 kg
Adjustable feet: max 100 mm


Functions of the rehabilitation bed


Instructions for use -in the "Download"
