PB 636

In the picture: PB 636 bed sonoma oak, with divided rails on one side of the bed. Accessories: bedside lamp.



A special feature of the PB 636 bed is the possibility of lowering the mattress platform down to a level of 29 cm. The low position allows for increased comfort and significantly reduces the possibility of injury in the situation of accidental falls out. The height adjustment range allows caregivers to work in optimal conditions. The possibility of using the divided side rails means that the user does not have to be restricted by the side rails in the bed.

A secure solution, when the side rails stay down. With its beech colored wooden parts, the classy wooden fronts and the silver color powdered metal pieces, the PB 636 offers a very peasant appearance that blends in perfectly with any surrounding.  Furthermore the PB 636 can be lowered to a ground level of 29 cm still providing enough space underneath to use a patient lift.

To avoid any sort of squeezing hazard, there are plastic end caps installed at the ends of the robust side bars that minimize the gaps between side bars and the wooden front in a way that makes an accidental squeezing impossible. The telescopic side bars can be lowered and slid directly onto each other so that they do not pose any hindrance for entering or exiting the bed. Even in the lowest position of the bed the lowered sidebars pose no annoyance.

This bed complies with the highest standards. Its 4-sectional lying surface is individually adjustable with 2 independent motors. Furthermore the adjustment of the foot part is assisted by 2 ratchets.  The lying surface frame is optically concealed by wooden side reels.

The lying area with wooden sprung slats comes with a surface area of 90 cm x 200 cm.  Against surcharge a metal mesh for the lying area is also available.

The product is delivered packaged in cardboard boxes on a pallet. Due to its cleverly devised and well-thought-out construction the PB 636 bed can be easily setup. Do not forget to  order a protection mat.

The 4-sectional lying surface is electrically adjustable between 29 cm and 72 cm (upper end of the lying area) All electronic components have been manufactured according to latest research and are in accordance with all valid safety requirements and standards.

Every single adjustment option of the bed is comfortably controllable by using the splash-proof manual control switch and any single function can be individually locked. The help pole can be included and has a load capacity of 80 kg. For additional stability it is also equipped with an inner core barrel.

Standard colors:

C1 Dark beech C2 Light beech



Non-standard colours​*:

C4 nabucco C5 Maple
C6 Acacia C7 Light oak
C8 Nut C153 Sonoma oak



Product details

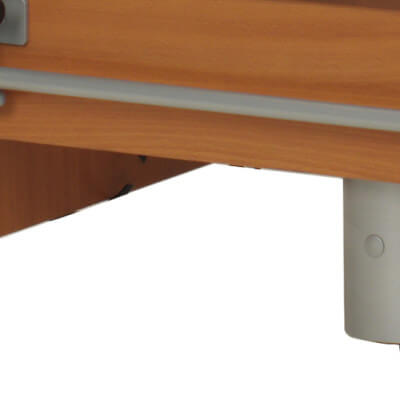

1. Lowest mattress support platform level of 29 cm 4. Handset with lockable functions

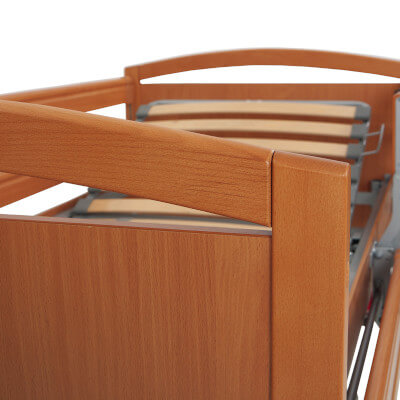

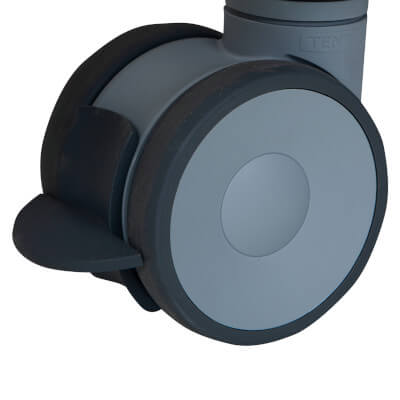

2. Decorative cover of the mattress support platform 5. Double brake castors
3. Latest actuator technology of bed lifting 6. Divided side rails (option)

Options

length and mattress support material choices • colours choice • divided side rails

Technical parameters

Save work load 175 kg
Maximum user weight 140 kg
Mattress support platform height adjustment from 29 to 72 cm
Back rest adjustment: 0 ÷ 70°
Lower leg rest adjustment: 0 ÷ 20°
External dimensions (length × width): 207 × 106 cm
Clearance under the bed: approx. 16 cm
Total weight: 118,6 kg
Castors: 100 mm with a brake



Functions of the rehabilitation bed
